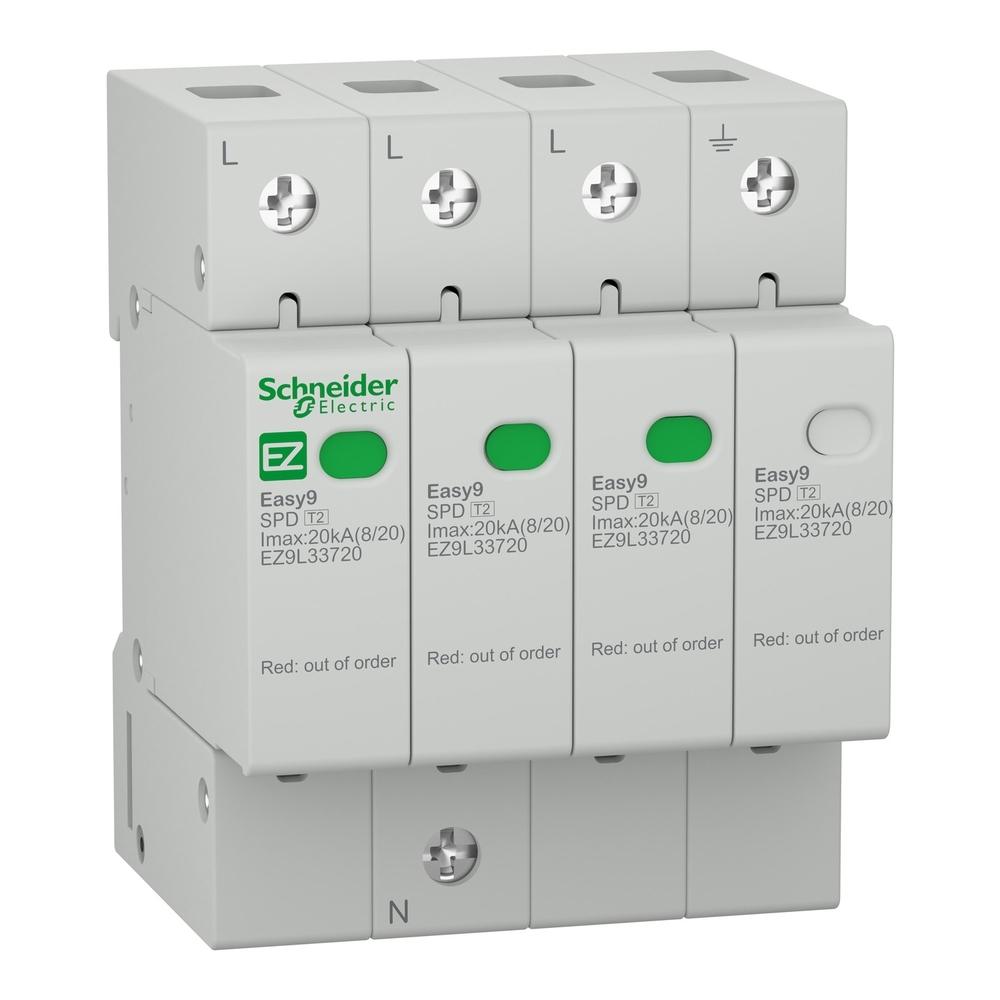

Easy9 Cathode Arrester - 3P + N - 400 V - 20000 A - SCHNEIDER ELECTRIC Easy9 SPDs EZ9L33720

In Stock

103.83 €

103.83 €

ex VAT

103.83 €  ex VAT

Item number:

EZ9L33720

Unit of measurement: par.

Manufacturer:

Manufacturer:

Manufacturer:

Model:

Easy9 SPDs

EAN:

3606480586774

- +

This Easy9 product is a cathodic arrester. This product, according to a maximum discharge current Imax of 20kA, is recommended for a medium risk level. It can be connected with 25A and C curve circuit breaker. The maximum continuous operating voltage Uc is 275 VAC. The rated discharge current is 10 kA. The maximum level of overvoltage protection up is 1.3 kV... View more

Description

This Easy9 product is a cathodic arrester. This product, according to a maximum discharge current Imax of 20kA, is recommended for a medium risk level. It can be connected with 25A and C curve circuit breaker. The maximum continuous operating voltage Uc is 275 VAC. The rated discharge current is 10 kA. The maximum level of overvoltage protection up is 1.3 kV It can be DIN rail mounted for modular installation. Its width is 8 terminals of 9 mm. According to IEC 60529 standard, the degree of protection is IP40 in modular panel. The operating temperature is -5°C to 60°C. Storage temperature is -5°C to 70°C. This product complies with IEC 61643-11.
No content available yet.

Specifications

Manufacturer
par.
SCHNEIDER ELECTRIC
Easy9 SPDs
Model Easy9 SPDs
EAN 3606480586774
Response time <= 25 ns
Maximum discharge current Measuring Difference: 20 kA N/PE
Nominal discharge current Common mode: 10 kA (L/N)
Remote signalling Without
Product certificates GOST
Product or component type Surge arrester
9 mm pitch 8
Standards IEC 61643-11
Mounting support DIN rail
Gross weight 0.00
Net weight 0.00
