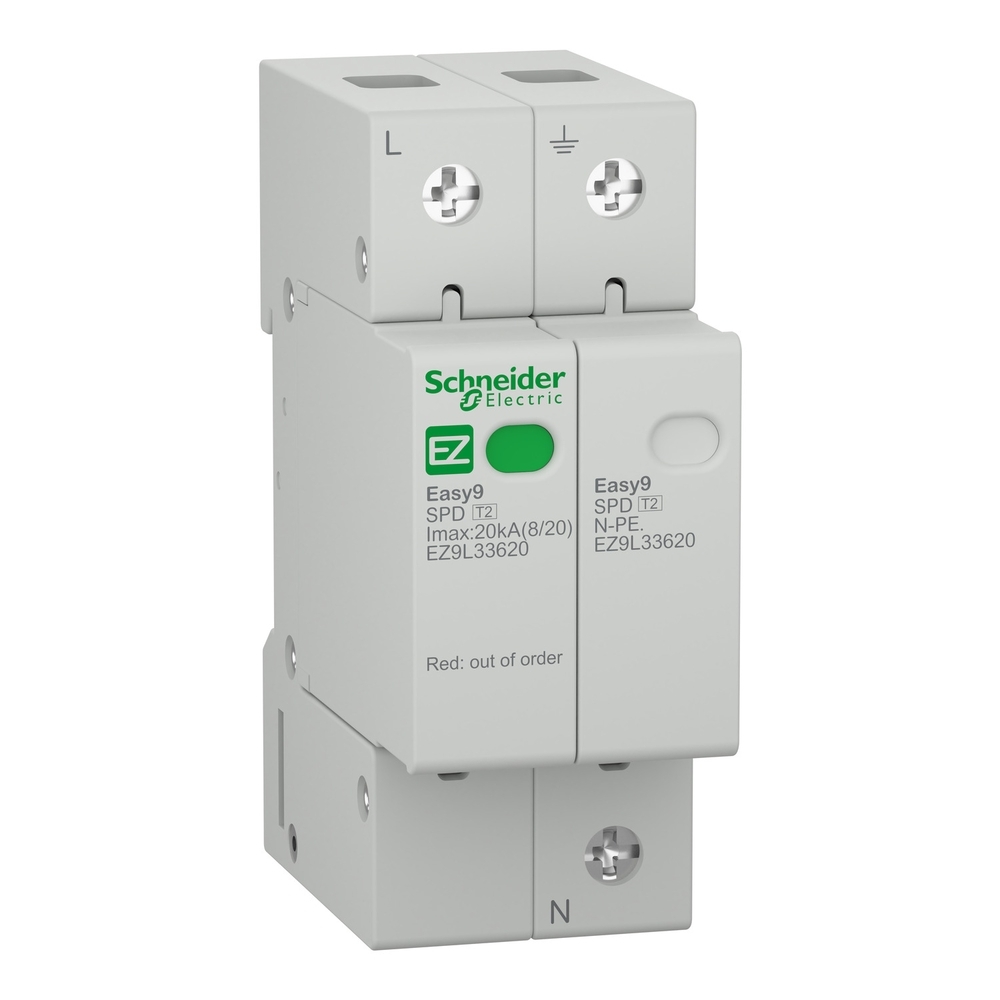

Easy9 Cathode Arrester - 1P + N - 230 V - 20000 A - SCHNEIDER ELECTRIC Easy9 SPDs EZ9L33620

This Easy9 product is a cathodic arrester. This product, according to a maximum discharge current Imax of 20kA, is recommended for a medium risk level. It can be connected with 25A and C curve circuit breaker. The maximum continuous operating voltage Uc is 275 VAC. The rated discharge current is 10 kA. The maximum level of overvoltage protection up is 1.3 kV It can be DIN rail mounted for modular installation. Its width is 4 terminals of 9 mm. According to IEC 60529 standard, the degree of protection is IP40 in modular panel. The operating temperature is -5°C to 60°C. Storage temperature is -5°C to 70°C. This product complies with IEC 61643-11.
