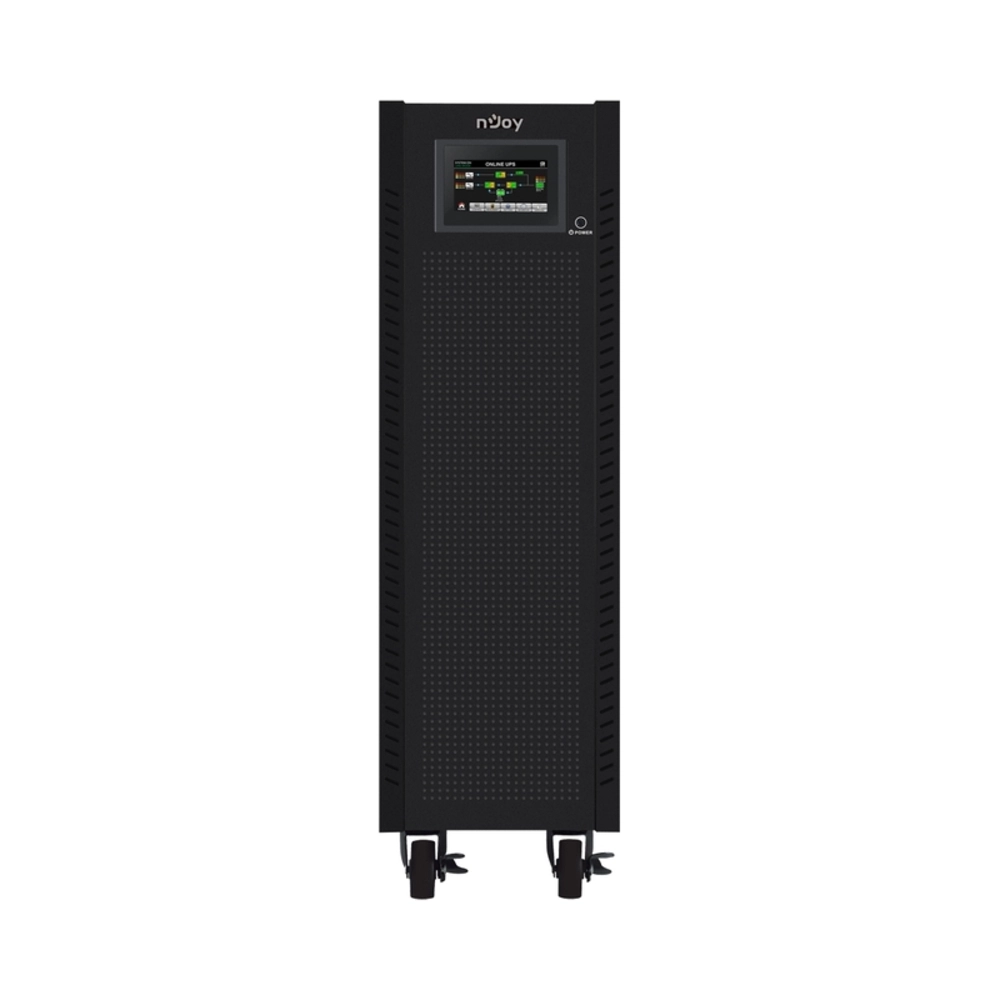

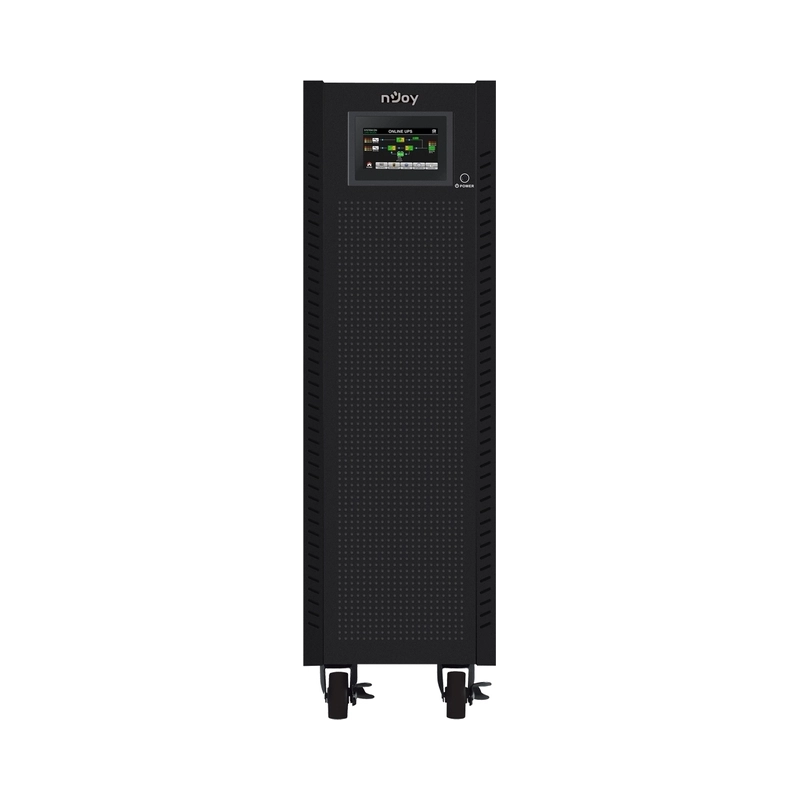

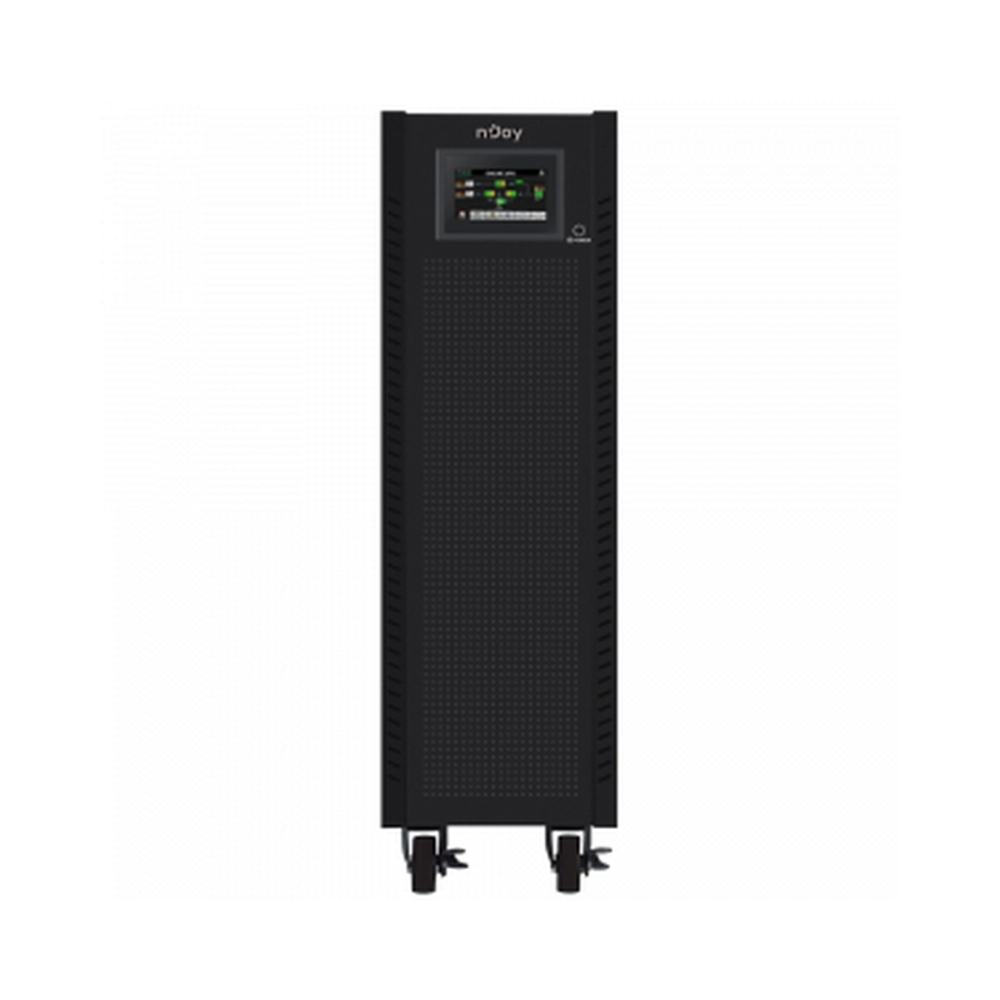

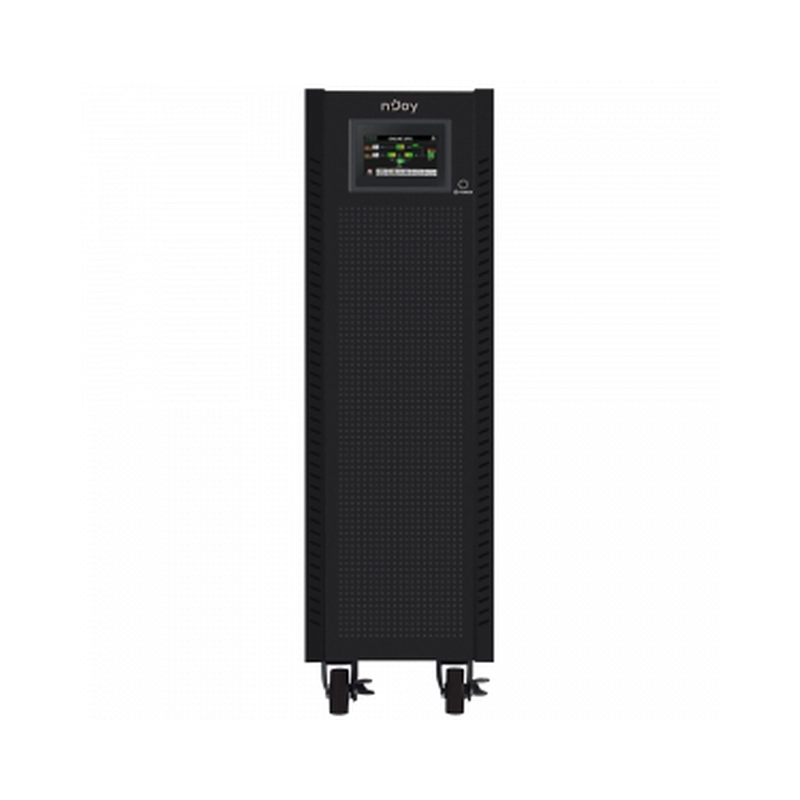

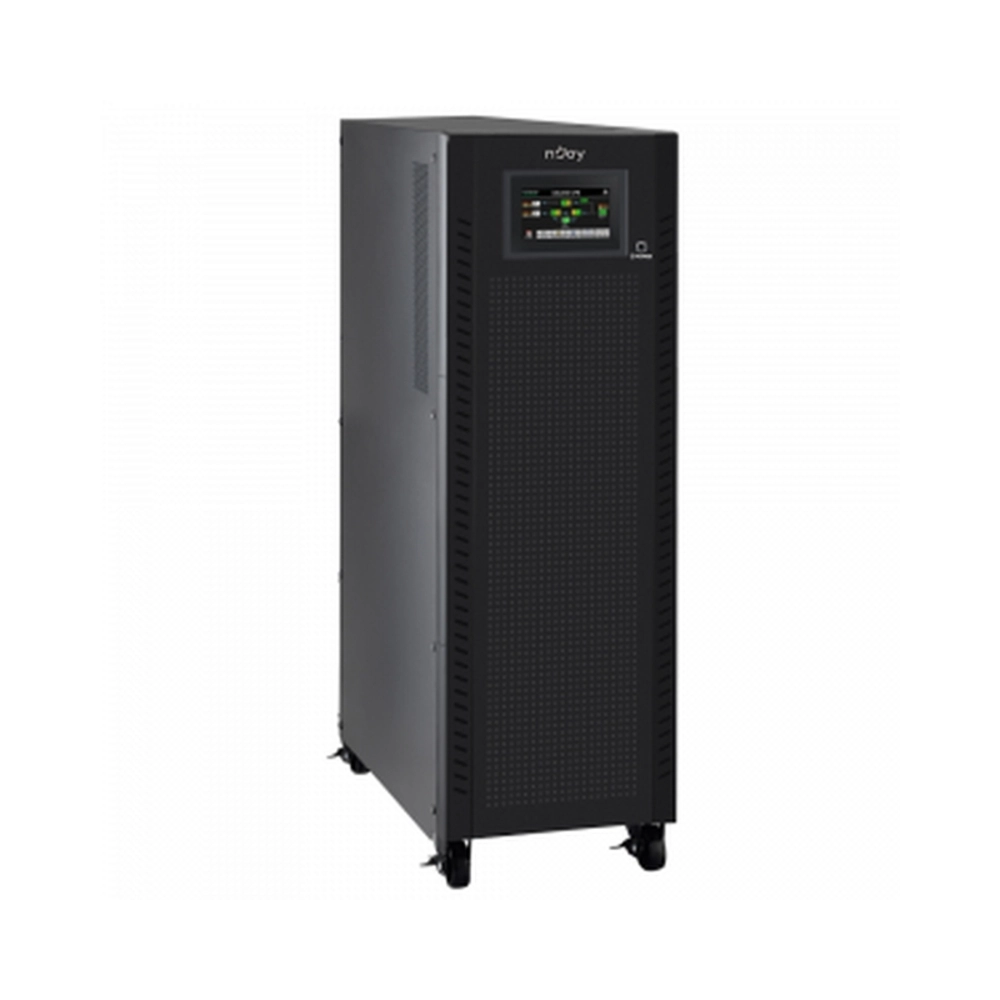

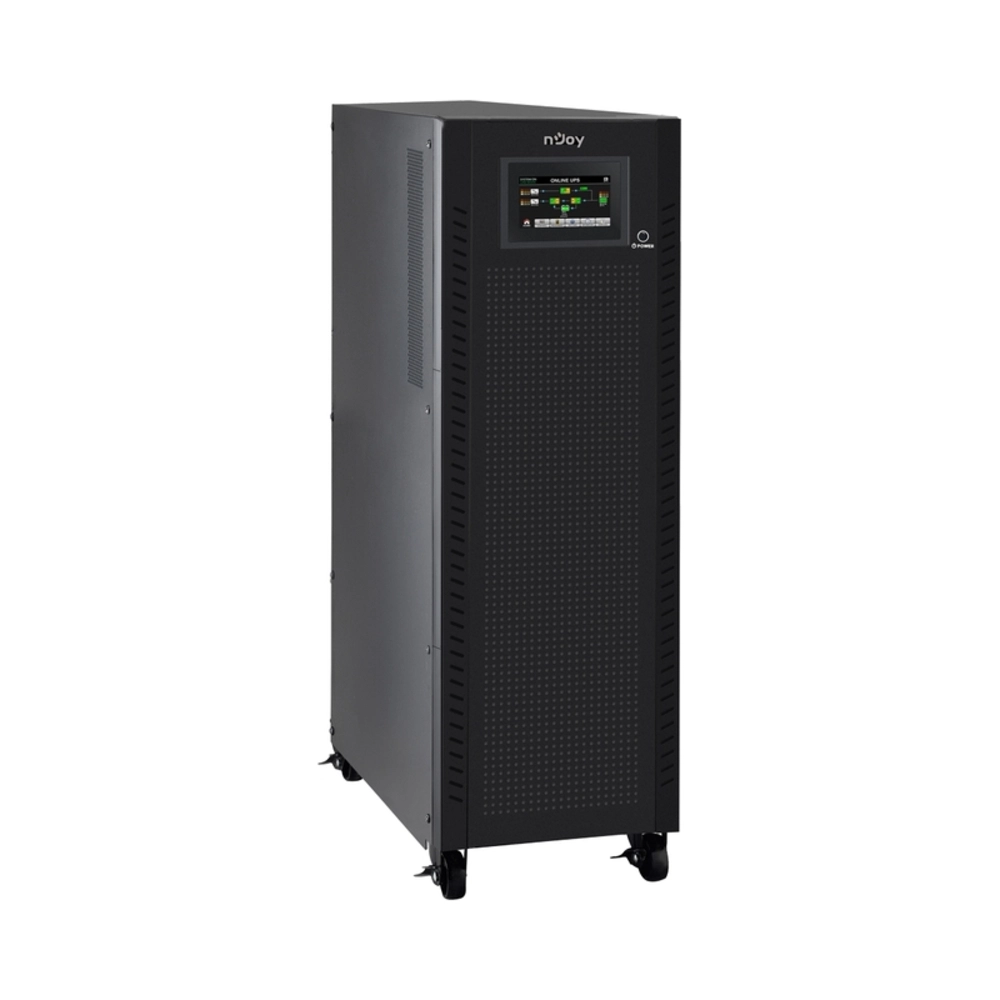

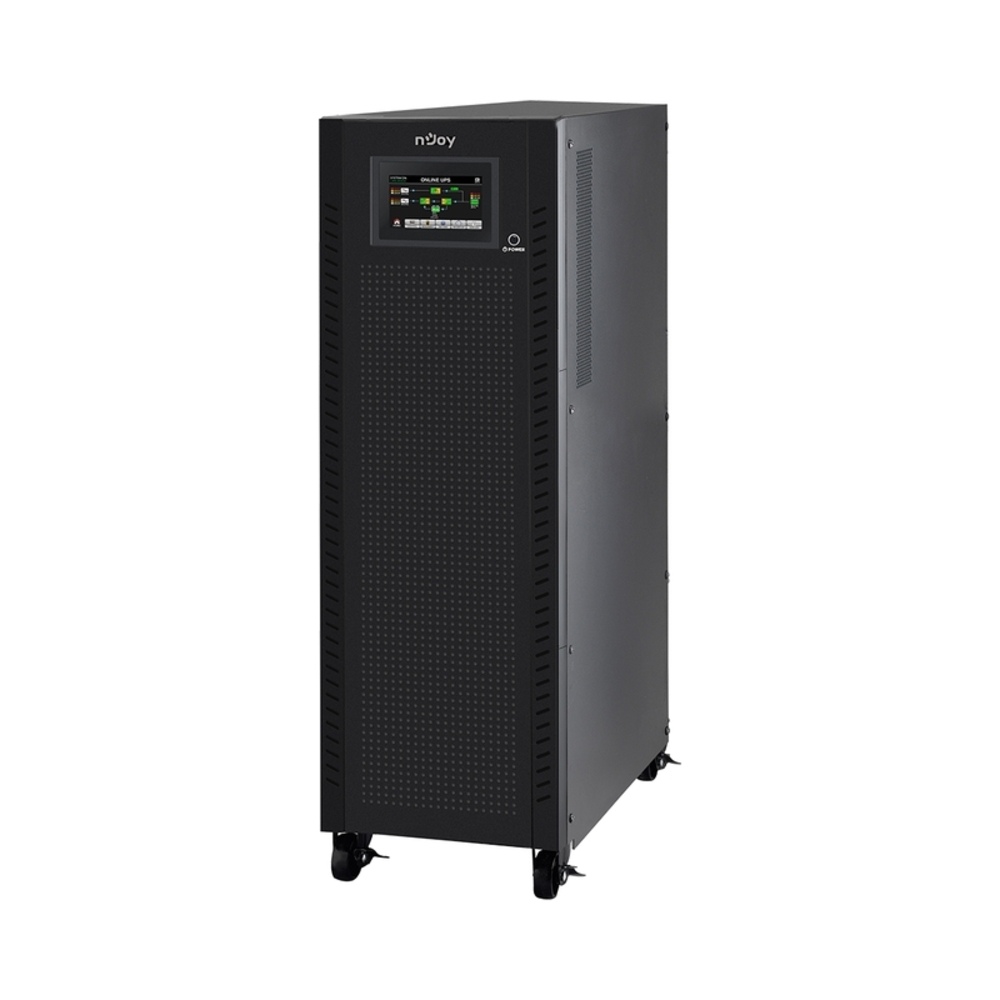

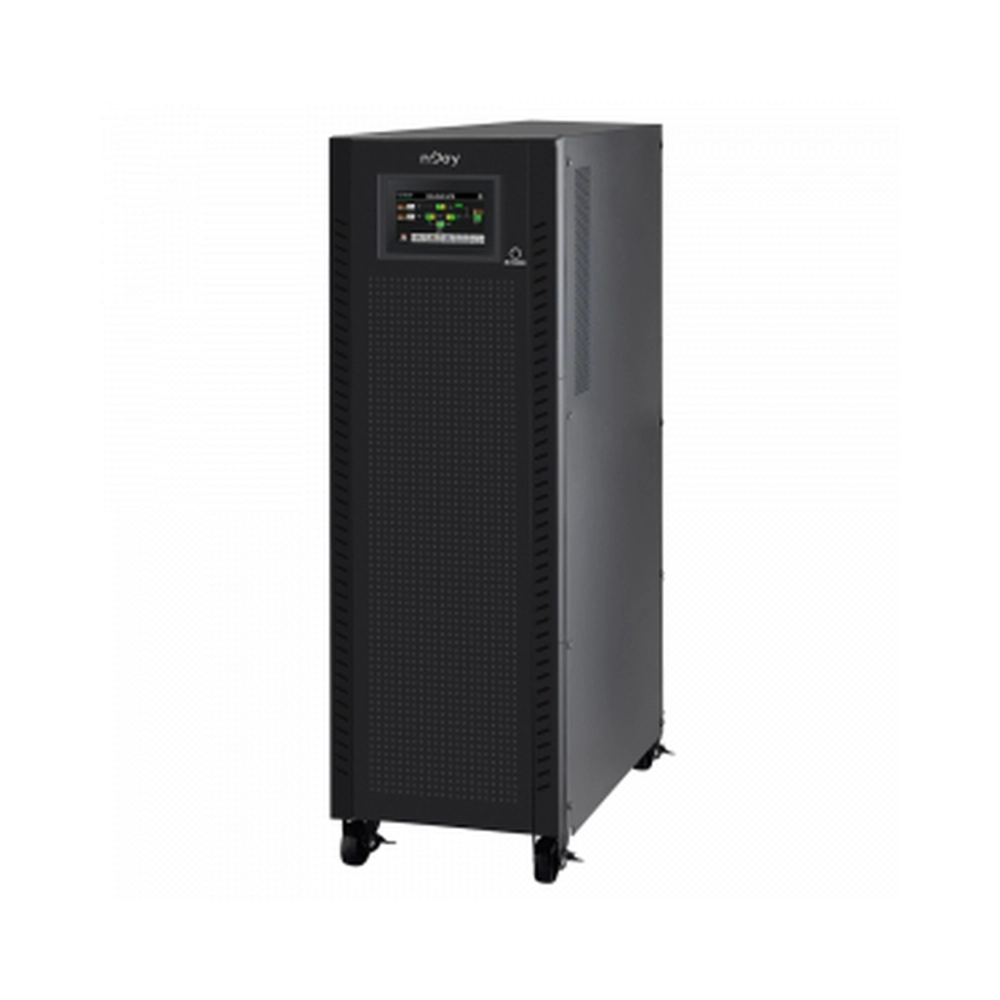

UPS 10kVA/10kW, On-Line technology, double conversion; 5“ touch LCD display - NJOY Garun 10KL

UPS 10kVA/10kW, On-Line technology, double conversion; 5" touch LCD display, pure sine wave. Possibility of parallel operation of up to 3 UPSs. Possibility of configuration of phases In/Out- 3:3, 3:1 and 1:1. Tower design. DSP technology; EPO function; compatible with generator; Power factor 0.99 at 100% load; Crest ratio 3:1; Switching time 0ms; Efficiency 98.5% (ECO mode); Harmonic distortion THD ≤2%@linear load, ≤5%@non-linear load.; Space for up to 20 internal 12V batteries 7Ah or 9Ah; option for external battery cabinet; Power supply via terminal block; USB/RS232/EPO/Intelligent port control. Charging current 1A - 12A with adjustment; Operating temperature: 0℃~40℃. Input voltage: 3:3 phase- AC190~520V(50% load); AC305~478V(100% load); 3:1 or 1:1 phaseAC110~300V(50% load); AC176~276V(100% load)/46-54Hz. Dimensions: 626x250x826mm, 44.5kg(without batteries)
