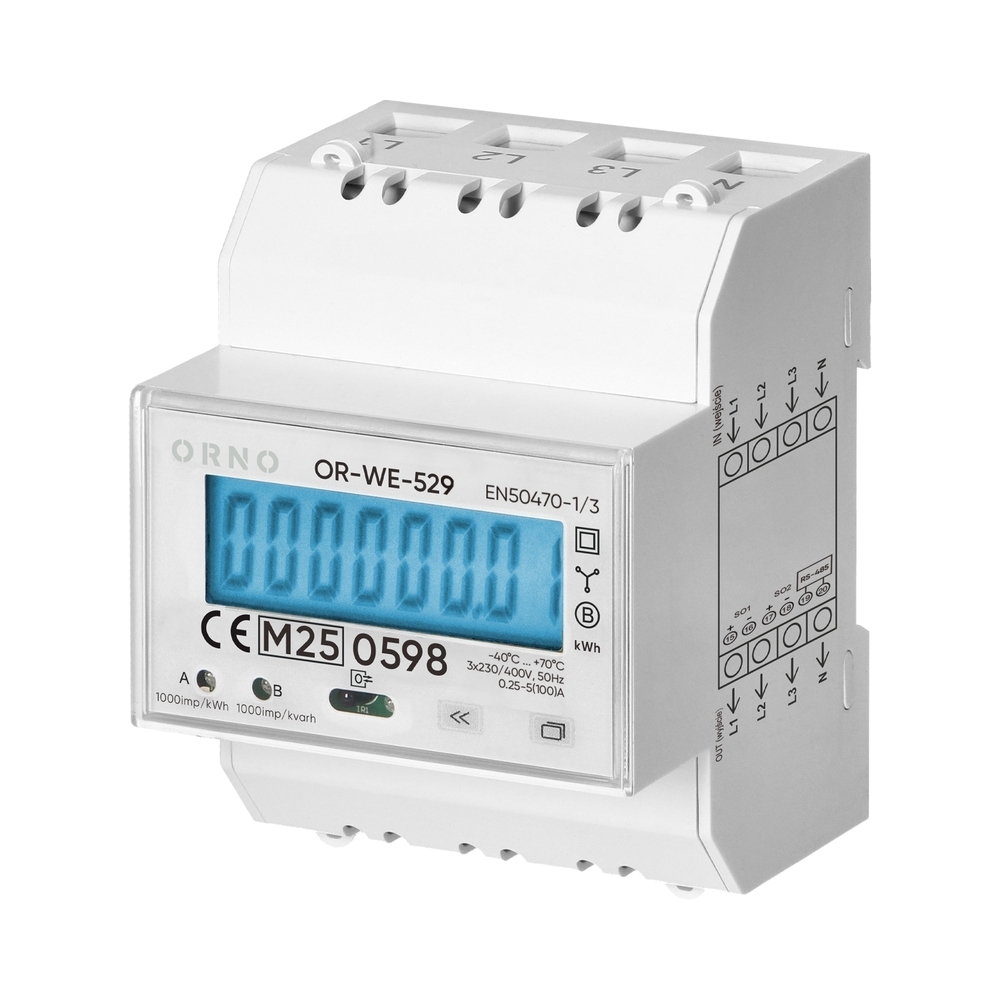

Three-phase electricity meter DIRECT Metering, RS485, 1 tariff, DIN mounting 4.5 mod.,100A, MID, PV Ready - Orno OR-WE-529

The three-phase meter with a maximum current of 100A is a modern measuring device designed for precise monitoring of electricity consumption in three-phase installations. The meter can be used for commercial, industrial and domestic applications where accurate and reliable readings are required.The meter operates with a rated voltage of 3x230/400V~ and a frequency of 50/60Hz, allowing direct measurement of energy without the need for current transformers. The device records active, reactive, consumed and released energy. This allows a complete monitoring of the energy flows in both directions. The minimum measuring current of 0.25A ensures high sensitivity of the device even at low load.The digital LCD display (6+2 digits) with backlight allows convenient reading even in low light. The unit also has a sub-meter reset function, particularly useful in situations requiring periodic resetting of readings.Designed for mounting on a TH-35mm DIN rail, it provides easy installation in standard switchboards. The enclosure measures 72x72x90 mm and fits into a standard 3 DIN module. The maximum cross section of the connecting wires is 35 mm². The IP51 degree of protection allows installation in any environment - dry and exposed to water.The device is equipped with RS-485 port with Modbus protocol and pulse output type S0 for easy integration with monitoring and automation systems. In addition, the meter supports IR protocol according to EN 62056-21.The meter is designed in accordance with the standards: IEC 62052-11:2020, IEC 62053-21:2020, IEC 62053-23:2020, EN 50470-1:2006 and EN 50470-3:2007. MID 2014/32/EU compliance allows the meter to be used in commercial premises where certified equipment is required.
