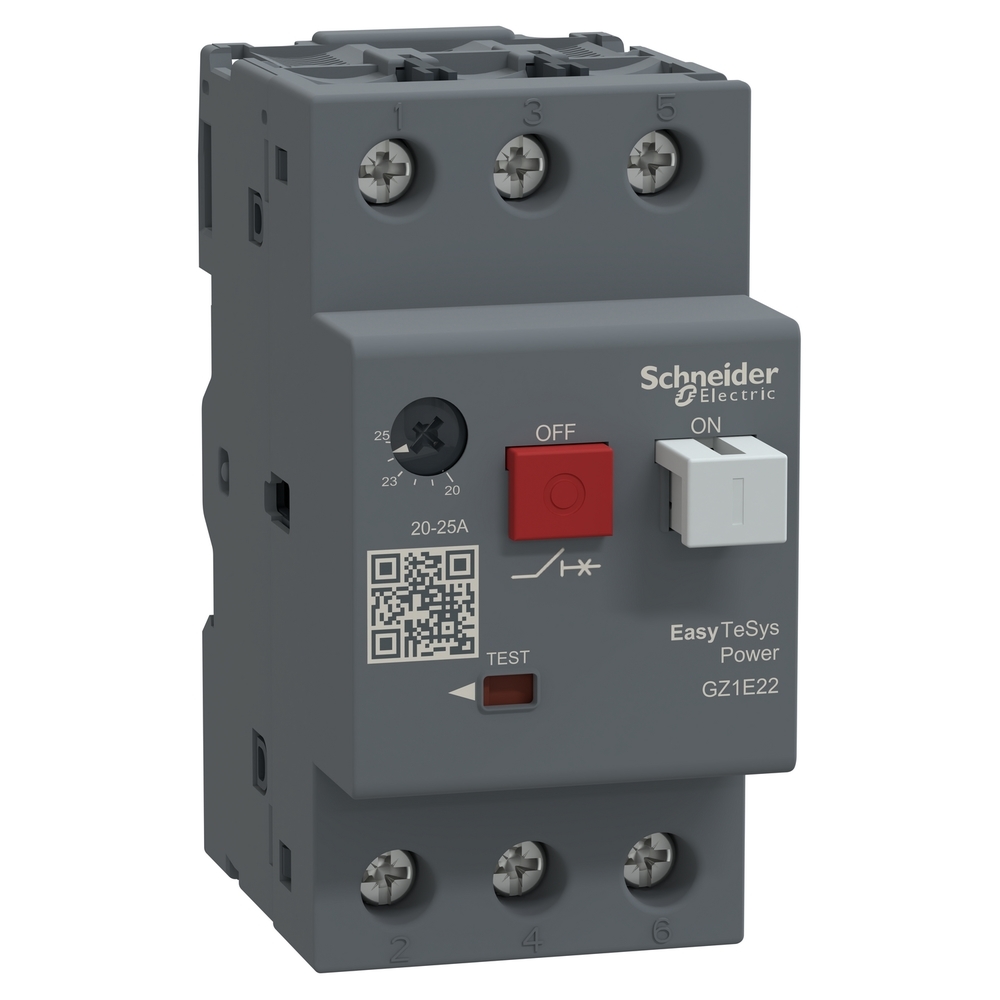

Thermal magnetic motor circuit breaker 20-25 A - SCHNEIDER ELECTRIC Easypact TVS Motor circuit breaker GZ1E22

mySchneider

On Order

54.78 €

54.78 € 107.14 BGN

ex VAT

54.78 € 107.14 BGN ex VAT

Item number: GZ1E22

Unit of measurement: par.

Manufacturer: par.

Manufacturer: SCHNEIDER ELECTRIC

Manufacturer: Easypact TVS Motor circuit breaker

Model: Easypact TVS Motor circuit breaker

EAN: 3606480567902

- +

Description

GZ1 E are 3 pole 3d thermocouple circuit breakers specifically designed for motor control and protection, complying with IEC 60947-2 and IEC 60947-4-1 standards. The range setting for thermal interruptions is 20-25A with a thermocouple switch. Provides IP 41 in GV2 MC01 cabinet and IP 55 in GV2 MC02 cabinet. Provides standard reliability and durability with 0.1 M electrical/mechanical cycles. These circuit breakers are designed for connection via screw terminals. Available worldwide, it is certified to various standards (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium (RoHs/Reach).

No content available yet.

Specifications

Manufacturer	par. SCHNEIDER ELECTRIC Easypact TVS Motor circuit breaker
Model	Easypact TVS Motor circuit breaker
EAN	3606480567902
Model	Easypact TVS Motor circuit breaker
Energy dissipation	2.5 W (Per pole)
Motor power in kW	5.5-5.5 kW at 230 V AC 50/60 Hz, 11-11 kW at 440 V AC 50/60 Hz, 11-11 kW at 400 V AC 50/60 Hz, 15
Recovery category	AC-3
Product or component type	Circuit breaker
Standards	IEC 60947-4, IEC 60947-2
Mounting support	Rail
[Ue] rated operating voltage	690 V AC 50/60 Hz in accordance with IEC 60947-2
Gross weight	0.00
Net weight	0.00
