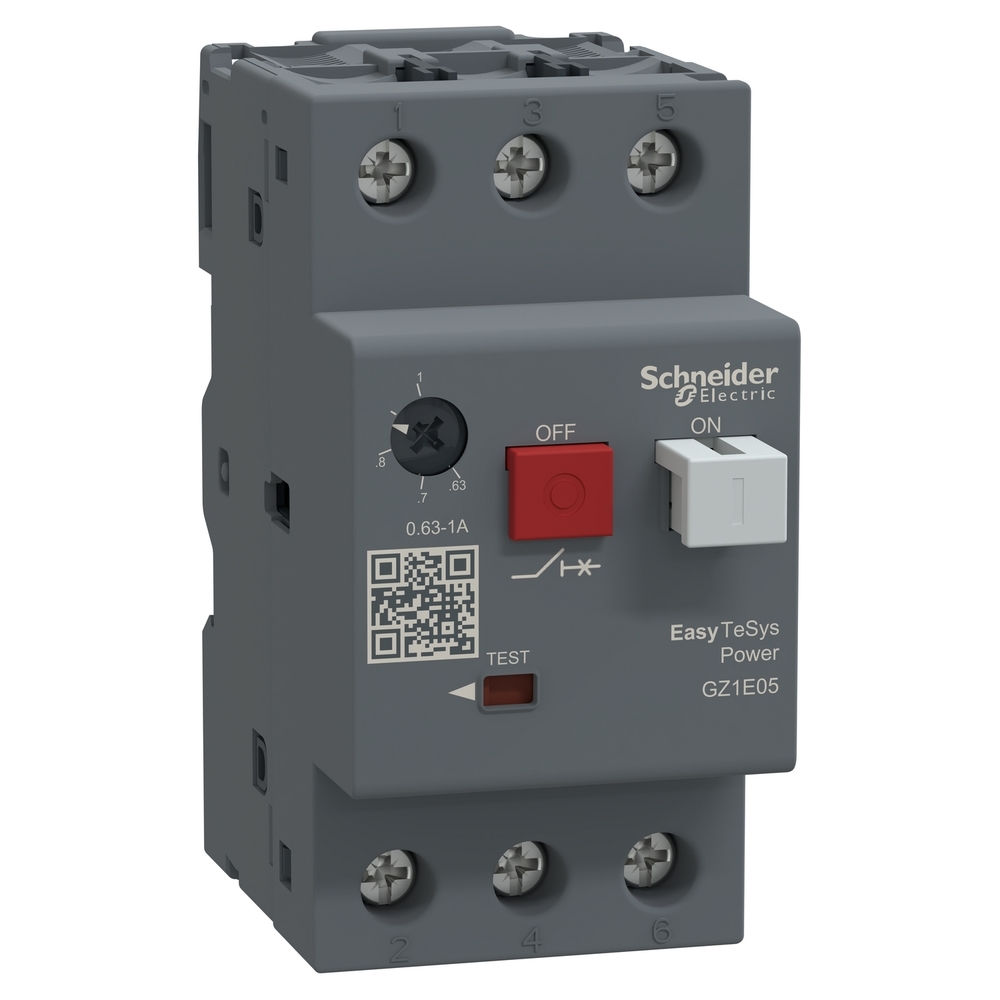

Thermal magnetic motor circuit breaker 0,63-1 A - SCHNEIDER ELECTRIC Easypact TVS Motor circuit breaker GZ1E05

mySchneider

On Order

35.01 €

35.01 € 68.47 BGN

ex VAT

35.01 € 68.47 BGN ex VAT

Item number: GZ1E05

Unit of measurement: par.

Manufacturer: par.

Manufacturer: SCHNEIDER ELECTRIC

Manufacturer: Easypact TVS Motor circuit breaker

Model: Easypact TVS Motor circuit breaker

EAN: 3606480567810

- +

Description

GZ1 E are 3 pole 3d thermionic circuit breakers specifically designed for motor control and protection complying with IEC 60947-2 and IEC 60947-4-1 standards. The setting range of thermal interruptions is 0.63-10 A with thermionic protection. Provides IP 41 in GV2 MC01 cabinet and IP 55 in GV2 MC02 cabinet. Provides standard reliability and durability with 0.1 M electrical/mechanical cycles. These circuit breakers are designed for connection via screw terminals. Available worldwide, certified to various standards (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium (RoHs/Reach).

No content available yet.

Specifications

Manufacturer	par. SCHNEIDER ELECTRIC Easypact TVS Motor circuit breaker
Model	Easypact TVS Motor circuit breaker
EAN	3606480567810
Model	Easypact TVS Motor circuit breaker
Connection - terminal block	Self-tensioning terminals 2 1-6 mm² - cable stiffness: Solid, Self-tightening terminals 2 1.5-6 mm² - cable
[Uimp] Impulse Voltage Resistance	6 kVc according to IEC 60947-2
Energy dissipation	2.5 W (Per pole)
Motor power in kW	0.37-0.37 kW at 500 V AC 50/60 Hz, 0.55-0.55 kW at 690 V AC 50/60 Hz
Recovery category	AC-3
Product or component type	Circuit breaker
Standards	IEC 60947-4, IEC 60947-2
Mounting support	Rail
[Ue] rated operating voltage	690 V AC 50/60 Hz in accordance with IEC 60947-2
Gross weight	0.00
Net weight	0.00
