Standalone controller 2 doors one side - ROSSLARE AC-020

In Stock

84.36

75.92 €  148.49 BGN

ex VAT

75.92 €  148.49 BGN ex VAT

Item number: 30394084

Unit of measurement: par.

Manufacturer: -31˚C to 63˚C

Manufacturer: 134 x 85 x 30 mm

Manufacturer: par.

Manufacturer: AC-020

Model: AC-020

Warranty: 24 months

- +

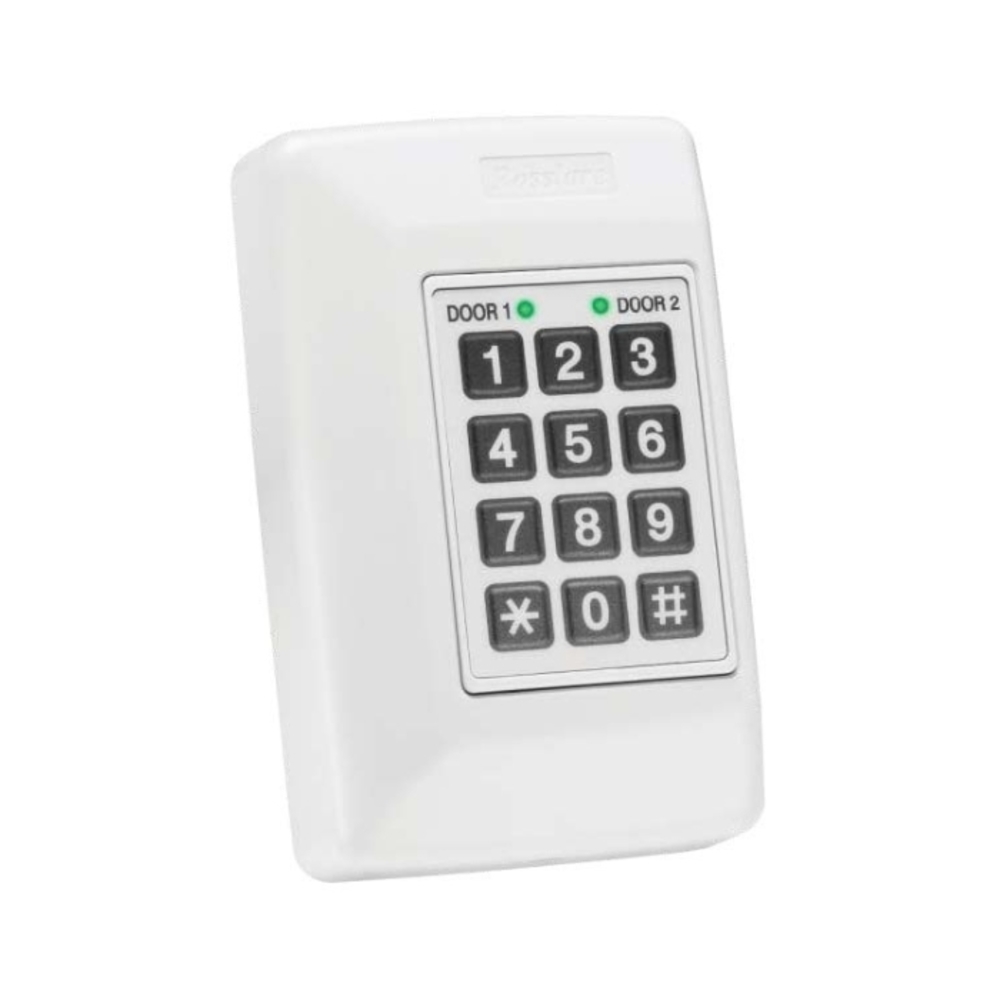

Compact stand-alone access control controller designed to control one door. It works with up to 500 users (entered via cards or PINs) and is compatible with Wiegand readers (26-Bit). Standalone mode support for small installations without the need for an additional controller. There are 2 relays (main and auxiliary) for door control, alarms, unlocking and ot... View more

Description

Compact stand-alone access control controller designed to control one door. It works with up to 500 users (entered via cards or PINs) and is compatible with Wiegand readers (26-Bit). Standalone mode support for small installations without the need for an additional controller. There are 2 relays (main and auxiliary) for door control, alarms, unlocking and other applications. Ability to work with cards, codes or a combination of both. Integrated short circuit and over voltage protection. Compact and robust design for indoor or protected outdoor installation.
No content available yet.

Specifications

Manufacturer
-31˚C to 63˚C
134 x 85 x 30 mm
par.
AC-020
Model AC-020
Operating temperature -31˚C to 63˚C
Dimensions 134 x 85 x 30 mm
Model AC-020
Sound/light Built-in audible signal (bell, chime, siren)/two tri-color status LEDs
PIN codes Programmable 4-digit PIN codes
Reading inputs Two standard 26-bit contactless/PIN Wiegand readers
Capacity 500 users (10 main, 490 regular)
Charging device (UPS) 12V (SLA) with capacity up to 7Ah
Power input 16 VAC (1.5 A/25 VA) from transformer
Input current Standby: 65 mA/Max: 120 mA
Gross weight 0.34
Net weight 0.22
