RFID biometric reader 13.56 MHz BLE-ID™ Wiegand 26/34-bit IP65 - ROSSLARE AY-B9150BT

On Order

415.68

415.68 €  813.00 BGN

ex VAT

415.68 €  813.00 BGN ex VAT

Item number: 30396049

Unit of measurement: par.

Manufacturer: IP65

Manufacturer: 58 x 188 x 49.8 mm

Manufacturer: par.

Manufacturer: Rosslare

Manufacturer: AY-B9150BT

Model: AY-B9150BT

Warranty: 24 months

- +

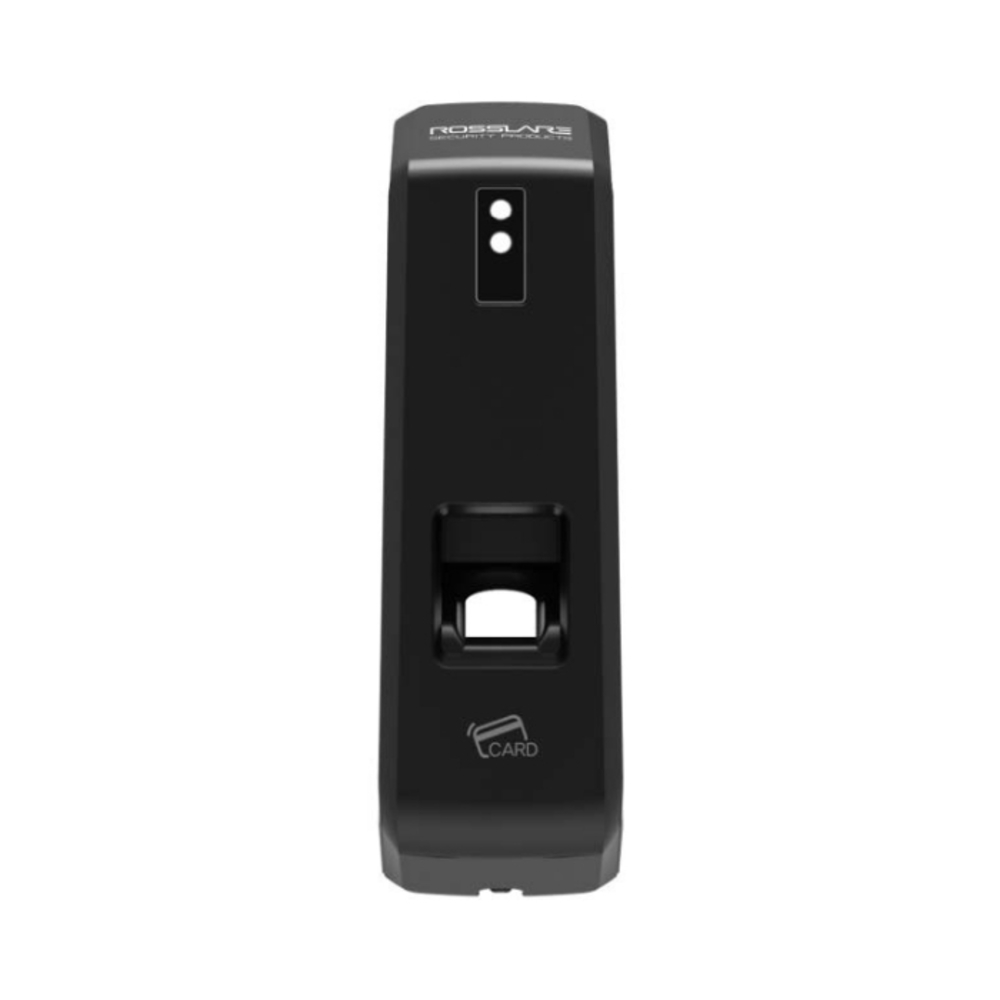

A professional fingerprint reader that features a high-speed optical sensor with a capacity of 20,000 patterns, powerful algorithms with liveness verification and encrypted data storage. The AY-B9150BT has a built-in 13.56 MHz MIFARE RFID card reader and features an integrated Rosslare BLE-ID™ reader. Features RS-485, TCP/IP and Wiegand 26- or 34-bit connect... View more

Description

A professional fingerprint reader that features a high-speed optical sensor with a capacity of 20,000 patterns, powerful algorithms with liveness verification and encrypted data storage. The AY-B9150BT has a built-in 13.56 MHz MIFARE RFID card reader and features an integrated Rosslare BLE-ID™ reader. Features RS-485, TCP/IP and Wiegand 26- or 34-bit connectivity. Features RS-485, TCP/IP and Wiegand 26- or 34-bit connectivity. The terminal can be easily set up using the AxTraxNG Client software. Alternatively, it is compatible with Rosslare's standalone RosslareBio 9000 management software, which is ideal for linking with existing third-party systems.
No content available yet.

Specifications

Manufacturer
IP65
DC12V input: max. 300 mA
58 x 188 x 49.8 mm
par.
Rosslare
AY-B9150BT
Model AY-B9150BT
Degree of protection IP65
Power DC12V input: max. 300 mA
Dimensions 58 x 188 x 49.8 mm
Model AY-B9150BT
Housing Metal/plastic
Software AxTraxNG/RosslareBio 9000
RFID frequency 13.56 MHz
Scan area 15 x 18 mm
Sensor Optical, 500 DPI resolution
Communication Wiegand (26-/34-Bit), RS-485, TCP/IP (10/100 Mbps), Bluetooth 4.0 (BLE)
Gross weight 0.00
Net weight 0.70
