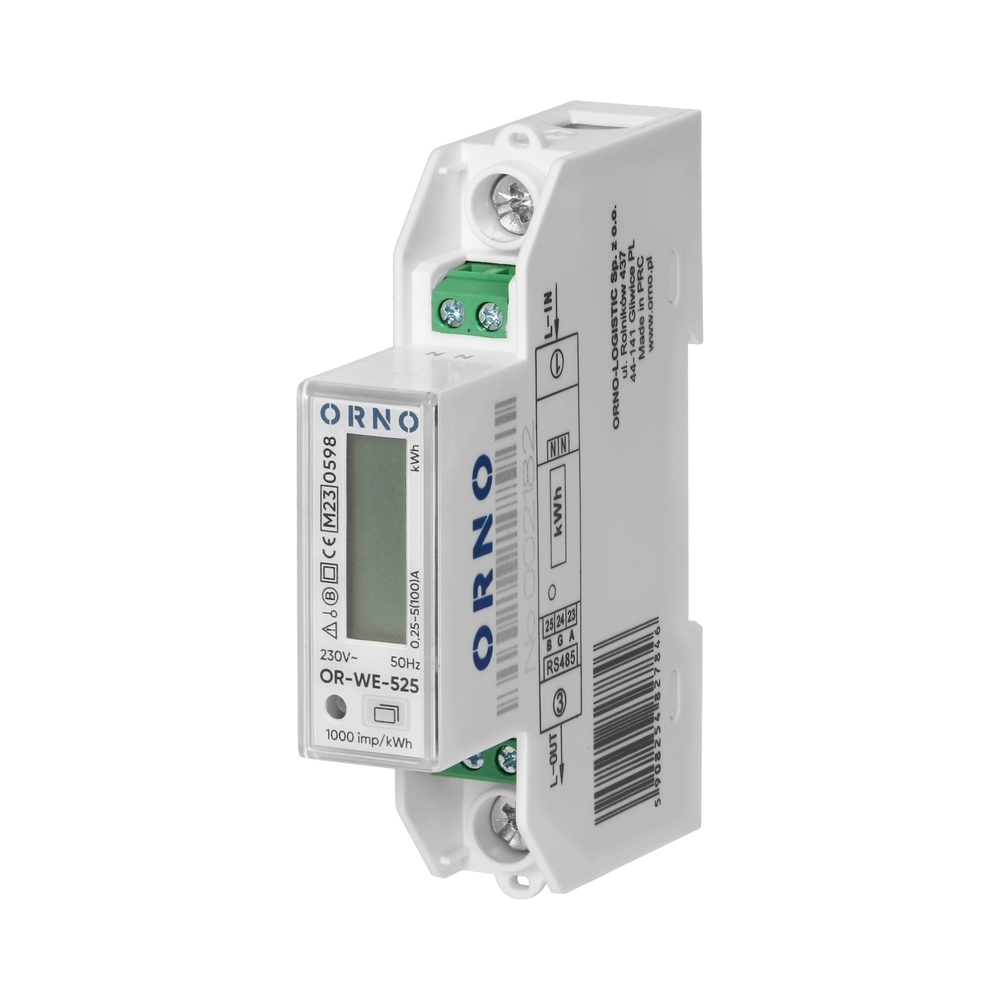

Monophasic power meter DIRECT Metering, RS485 Modbus, multi-tariff DIN mounting 1 mod, 100A, MID - Orno OR-WE-525

The meter (kWh) is used for direct measurement of active power in a single-phase system and recording of consumed electricity with the possibility of remote reading of the registers of a group of indicators, via a wired network using the RS485 standard. Protocol: modbus-RTU type. A special electronic circuit under the influence of the current flowing and the applied voltage generates pulses in an amount proportional to the consumed electricity. Power consumption in phase is indicated by a flashing LED. The number of pulses is converted to energy consumed and the value is displayed on the LCD (5+2). Lithium battery for a real watch with an accuracy of 0.5 sec/day. Power supply: 230V~, 50Hz, base current: 5A, maximum current: 100A, min. current: 0.25A, pulse frequency: 1000 imp/kWh, accuracy class B, single module housing with zero width, DIN rail mounting TH-35 mm. The energy measurement is performed in accordance with EN50470-1:2006, EN50470-3:2006 MID Directive 2014/32/EU.
