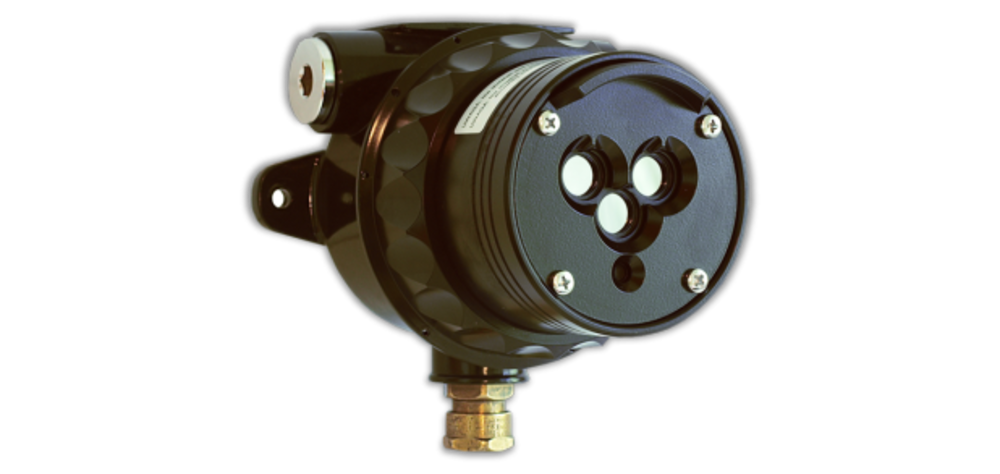

(IR) Multiband explosion-proof infrared flame detector - Polon Alfa PPW-40REx - Polon Alfa pcs.

On Order

3 030.22 €

3 030.22 € 5 926.60 BGN

ex VAT

3 030.22 € 5 926.60 BGN ex VAT

Item number: 30227022

Unit of measurement: par.

Manufacturer: Infrared (IR)

Manufacturer: II 2G Ex ib II C T6 Gb + II 1D Ex ta IIIC T85oC IP66

Manufacturer: YES

Manufacturer: #000000

Manufacturer: par.

Manufacturer: Polon Alfa

Manufacturer: PPW-40REx

Model: PPW-40REx

1 pcs. Packaging (1 pcs.)

- +

PPW-40REx provides high flame detection performance on fuels containing hydrocarbons while maintaining high immunity against false alarms due to a set of three infrared sensors operating in different bands. Designed for use in potentially explosive mixtures of gases and vapours of flammable liquids with air (ATEX subgroups IIA, IIB, IIC) and in explosive air... View more

Description

The detector is designed to be connected to such control panels that it can receive an alarm signal from relay contacts without potential, and cooperate with other systems using a 4 - 20 mA current loop. The detector is designed for indoor and outdoor applications. Enclosure protection level - IP66, Current output - 4 - 20 mA, Directional correlation horizontal - 80⁰, Directional correlation vertical - 75⁰, Cables 0,5mm2 to 2,5mm2 shielded, Cable glands - M25, Enclosure material - aluminium.

No content available yet.

Specifications

Manufacturer	Infrared (IR) II 2G Ex ib II C T6 Gb + II 1D Ex ta IIIC T85oC IP66 YES #000000 par. Polon Alfa PPW-40REx
Model	PPW-40REx
Technology	Infrared (IR)
Class of detector	II 2G Ex ib II C T6 Gb + II 1D Ex ta IIIC T85oC IP66
Explosionproof	YES
Colour	Black
Model	PPW-40REx
Gross weight	0.00
Net weight	0.00
