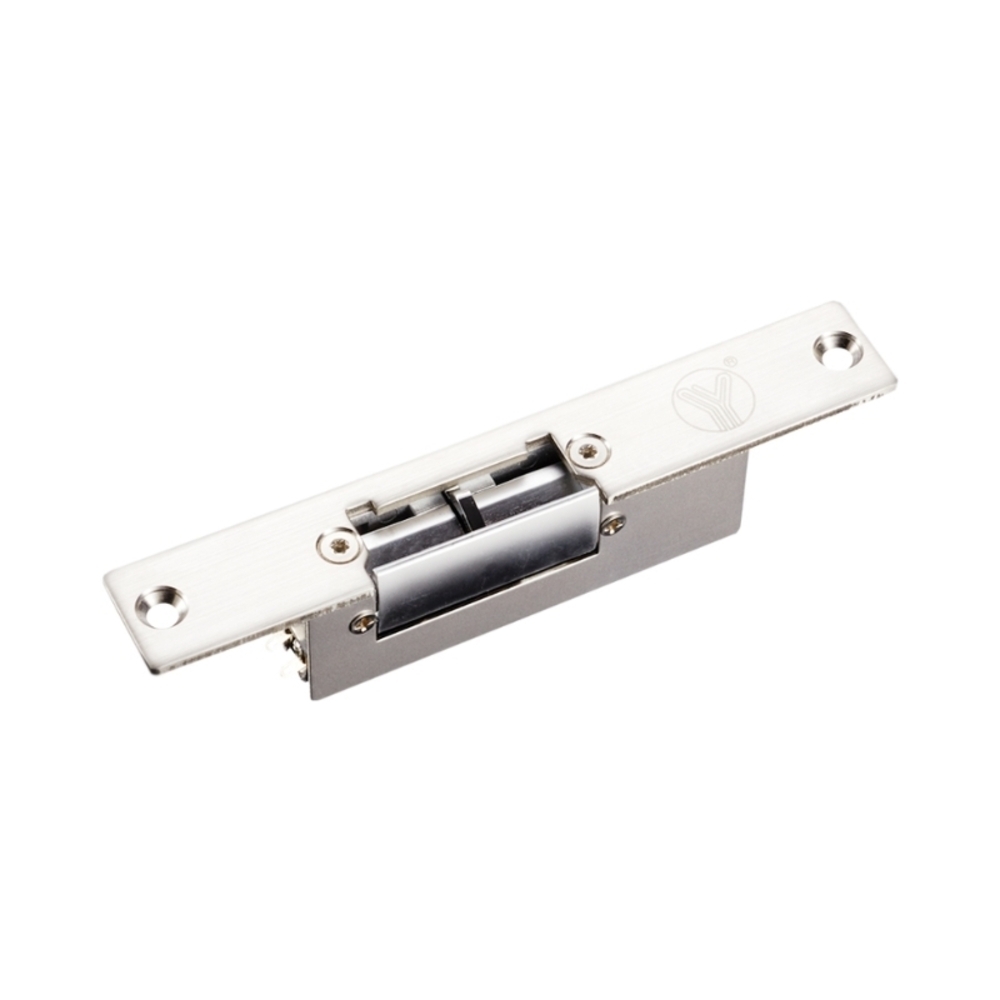

Electrical counter, short plate, Fail Secure - YLI YS-131NO-S

In Stock

15.70

15.70 €  30.71 BGN

ex VAT

15.70 €  30.71 BGN ex VAT

Item number: YS-131NO-S

Unit of measurement: par.

Manufacturer: -10 to +55°C

Manufacturer: 160x25X31(mm)

Manufacturer: par.

Manufacturer: YLI

Manufacturer: YS-131NO-S

Model: YS-131NO-S

Warranty: 24 months

- +

The YLI YS-131NO-S is an electric counter for access control systems, designed for built-in installation in door frames and operation with standard mechanical locks. The model is Fail-Secure (NO) - in the absence of power it remains locked, and when power is applied it unlocks the door. The unit operates on 12 V DC (24 V optional) and consumes about 240 mA a... View more

Description

The YLI YS-131NO-S is an electric counter for access control systems, designed for built-in installation in door frames and operation with standard mechanical locks. The model is Fail-Secure (NO) - in the absence of power it remains locked, and when power is applied it unlocks the door. The unit operates on 12 V DC (24 V optional) and consumes about 240 mA at 12 V, providing a holding force of about 350-500 kg. The housing is painted steel with a stainless steel locking element, the dimensions are approximately 160 × 25 × 31 mm, and the weight is approximately 0.36 kg. The model is suitable for wooden, metal and PVC doors and has a signal output (NO/NC/COM) for status reporting to an access control system or intercom
No content available yet.

Specifications

Manufacturer
-10 to +55°C
160x25X31(mm)
par.
YLI
YS-131NO-S
Model YS-131NO-S
Operating temperature -10 to +55°C
Dimensions 160x25X31(mm)
Model YS-131NO-S
Feature Fail Secure
Retention force 350-500 kg
Material Steel
Input voltage DC12V (default); DC24V (adjustable)
Gross weight 0.00
Net weight 0.36
