Electrical counter, short plate, Fail Safe - YLI YS-131NC-S

In Stock

15.70

15.70 €  30.71 BGN

ex VAT

15.70 €  30.71 BGN ex VAT

Item number: YS-131NC-S

Unit of measurement: par.

Manufacturer: -10 to +55°C

Manufacturer: 160x25X31(mm)

Manufacturer: par.

Manufacturer: YLI

Manufacturer: YS-131NC-S

Model: YS-131NC-S

Warranty: 24 months

- +

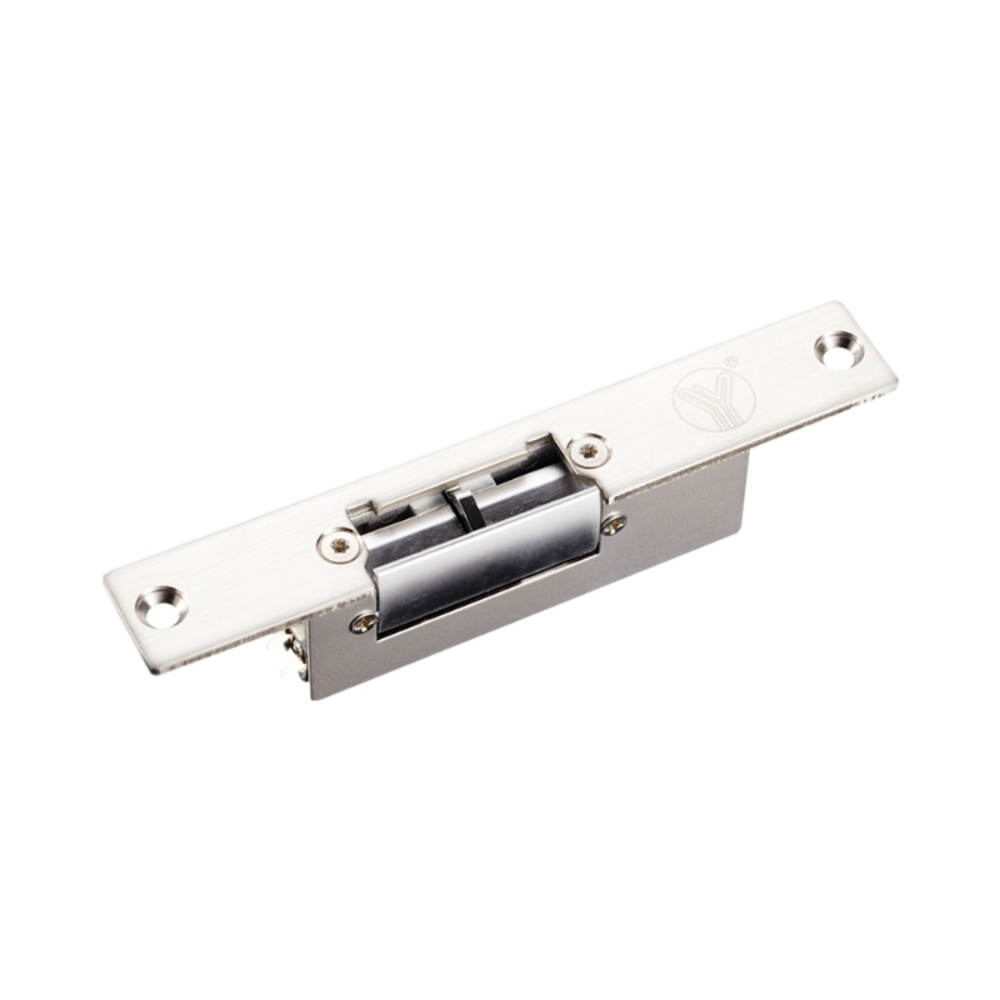

The YLI YS-131NC-S is an electric countermeasure for access control systems designed for installation in door frames and operation with standard mechanical locks. The model is Fail-Safe (NC) - it unlocks when power is applied, and remains locked when power is not applied. Supports a holding force of approx. 350-500 kg, 12 V DC power supply (24 V optional) an... View more

Description

The YLI YS-131NC-S is an electric countermeasure for access control systems designed for installation in door frames and operation with standard mechanical locks. The model is Fail-Safe (NC) - it unlocks when power is applied, and remains locked when power is not applied. Supports a holding force of approx. 350-500 kg, 12 V DC power supply (24 V optional) and consumption of approx. 200 mA. The housing and tongue are stainless steel, with dimensions 160 × 25 × 31 mm, the device is suitable for wooden, metal and PVC doors. In addition, there is a signal output (NO/NC/COM) for reporting the lock status to an access control or alarm system.
No content available yet.

Specifications

Manufacturer
-10 to +55°C
160x25X31(mm)
par.
YLI
YS-131NC-S
Model YS-131NC-S
Operating temperature -10 to +55°C
Dimensions 160x25X31(mm)
Model YS-131NC-S
Feature Fail Safe
Retention force 350-500 kg
Material Steel
Input voltage DC12V (default); DC24V (adjustable)
Gross weight 0.00
Net weight 0.36
