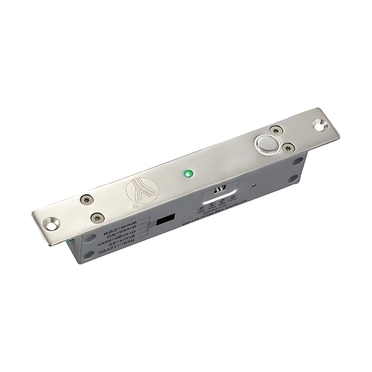

Electric Drop Bolt - YLI YB-500A(LED)

Out of Stock

33.60 €

33.60 € 65.72 BGN

ex VAT

33.60 € 65.72 BGN ex VAT

Item number: YB-500A(LED)

Unit of measurement: par.

Manufacturer: #868686

Manufacturer: par.

Manufacturer: YLI

Manufacturer: YB-500A(LED)

Model: YB-500A(LED)

- +

Electric drop bolt for installation with narrow profile. Designed for all types of doors (wooden, metal, PVC or glass*). Features: Hull - stainless steel; Retaining force - 1000 kg.Fail Safe - locked under tension; LED indication - Yes; Door status output - Yes (NO/Com); Regulable lock time - Yes (0, 3, 6 or 9 sec.); Power: 12 VDC Consumption: start 960mA, ... View more

Description

Electric drop bolt for installation with narrow profile. Designed for all types of doors (wooden, metal, PVC or glass*). Features:

Hull - stainless steel;
Retaining force - 1000 kg.
Fail Safe - locked under tension;
LED indication - Yes;
Door status output - Yes (NO/Com);
Regulable lock time - Yes (0, 3, 6 or 9 sec.);
Power: 12 VDC
Consumption: start 960mA, (standby 180mA)
Distance between the two plates - 8mm. (maximum);
Operating temperature: -25ºC ~ 55ºC
Dimensions:
- face plate - 192x25x37mm.;
- locking plate - 90x25x2mm.;
- cut - f16x13mm.;

* for glass doors an additional BBK-600 or BBK-601 plate is required
