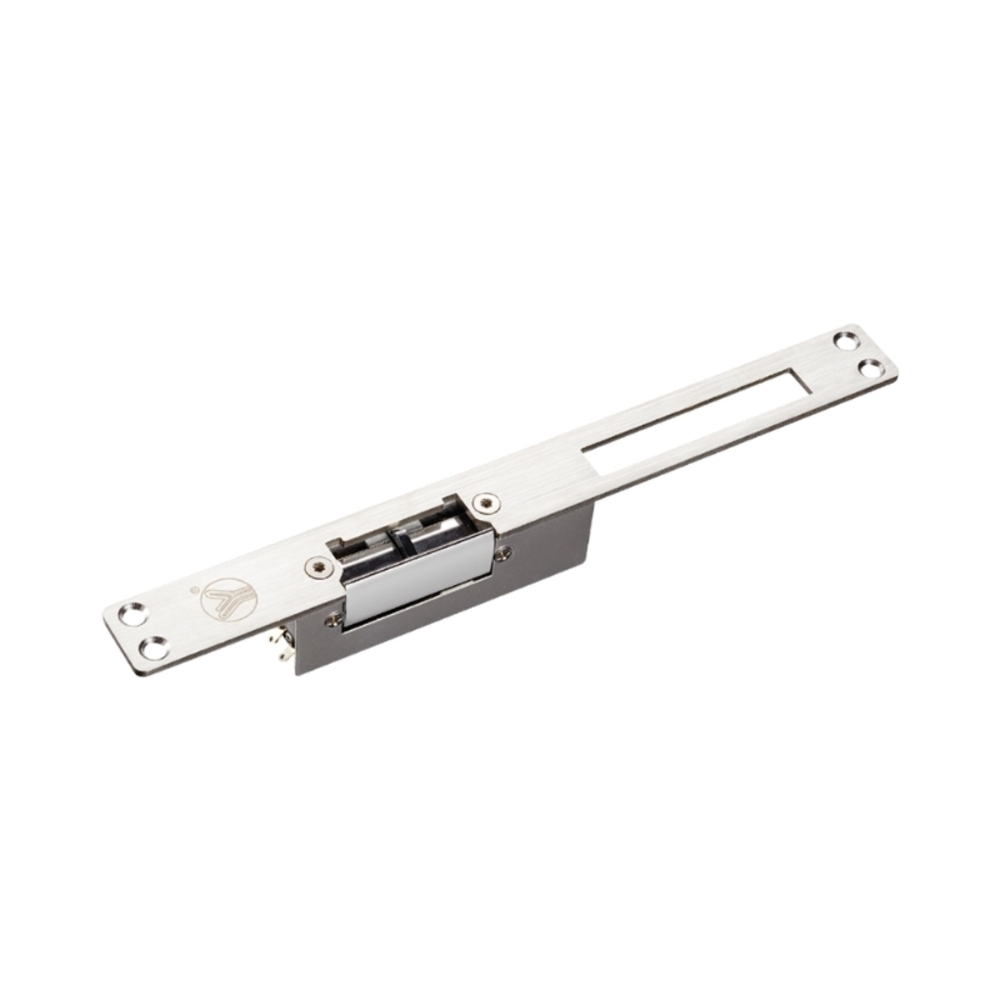

Electric counter, long plate, Fail Safe - YLI YS-132NC-S

In Stock

19.10

19.10 €  37.36 BGN

ex VAT

19.10 €  37.36 BGN ex VAT

Item number: YS-132NC-S

Unit of measurement: par.

Manufacturer: -10 to +55°C

Manufacturer: 250x25x31(mm)

Manufacturer: par.

Manufacturer: YLI

Manufacturer: YS-132NC-S

Model: YS-132NC-S

Warranty: 24 months

- +

YLI YS-132NC-S is an electric counter with extended mounting plate, designed for access control systems and operation with European type mechanical locks. The model is Fail-Safe (NC) - when power is supplied the lock remains locked and when power is interrupted it unlocks, making it suitable for emergency exits. It operates with 12 V DC (24 V optional), has ... View more

Description

YLI YS-132NC-S is an electric counter with extended mounting plate, designed for access control systems and operation with European type mechanical locks. The model is Fail-Safe (NC) - when power is supplied the lock remains locked and when power is interrupted it unlocks, making it suitable for emergency exits. It operates with 12 V DC (24 V optional), has a consumption of about 200 mA, providing a holding force of approximately 350-500 kg. The housing is painted steel with a stainless steel locking element, the dimensions are 250 × 25 × 31 mm, and the weight is about 0.4 kg. The model has a signal output (NO/NC/COM) for status indication and is suitable for wooden, metal and PVC doors.
No content available yet.

Specifications

Manufacturer
-10 to +55°C
250x25x31(mm)
par.
YLI
YS-132NC-S
Model YS-132NC-S
Operating temperature -10 to +55°C
Dimensions 250x25x31(mm)
Model YS-132NC-S
Feature Fail Safe
Retention force 350-500 kg
Material Steel
Weight 0.4 kg
Input voltage DC12V (default); DC24V (adjustable)
Gross weight 0.00
Net weight 0.40
