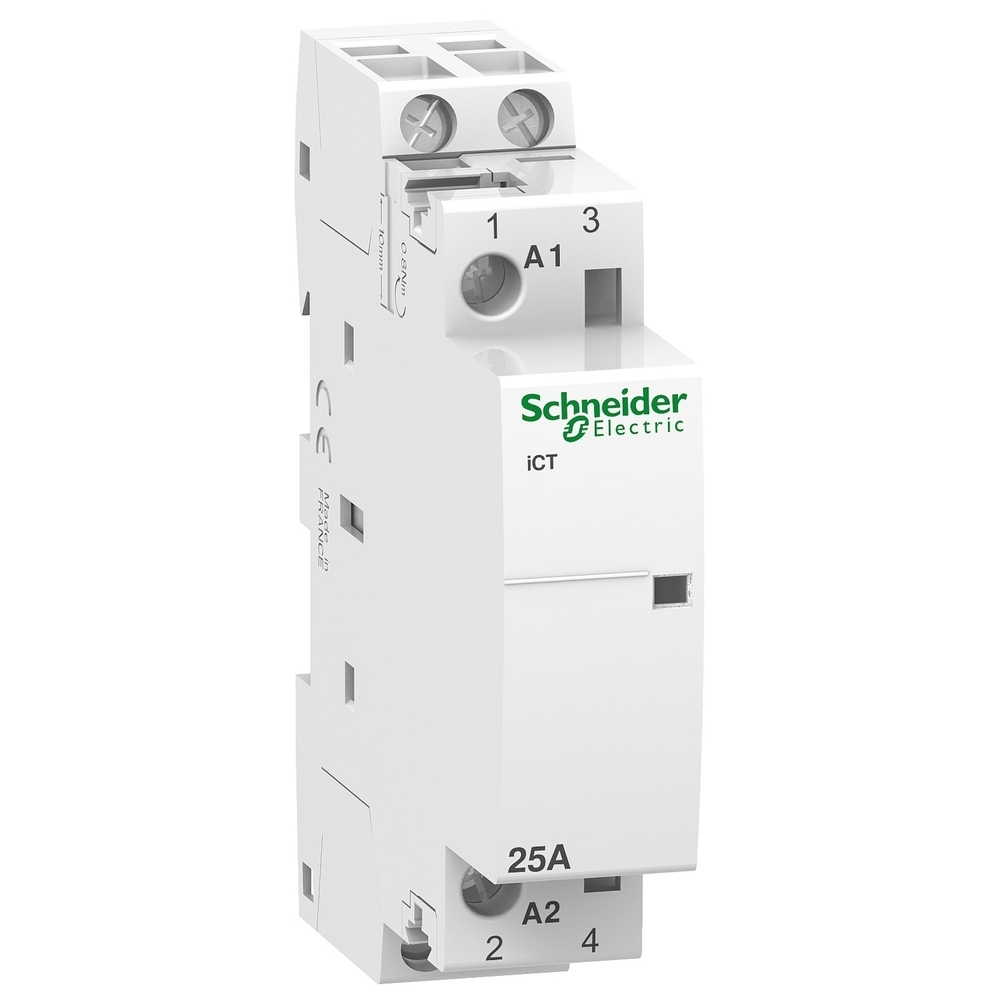

Contactor 25A 2NO 230...240V 50Hz - SCHNEIDER ELECTRIC Acti 9 iCT A9C20732

This Acti9 iCT is a modular contactor. It is a 2P remote control with 2 normally open contacts. In rated current is 25A for AC-7a and 8.5A for AC-7b. Rated operating voltage Ue 250 VAC. The voltage of the Uc control is 230 VAC to 240 VAC. This device can be used for control circuits. This device can be used for remote switching of small motors (fans, mixers) or HVAC system applications. This product is compliant with the IEC/EN 61095 standard. Electrical resistance is increased to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B. The maximum switching is 100 per day. The insulation voltage Ui is 500 VAC. The rated impulse voltage Uimp is 4 kV. The degree of contamination is 2. DIN rail mounting. Its width is 2 terminals of 9 mm. The product colour is white (RAL9003). Dimensions are (W) 81 mm x (H) 18 mm x (D) 68.5 mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in cabinet. The operating temperature ranges from -5 °C to 60 °C. Storage temperature is -40°C to 70°C.
