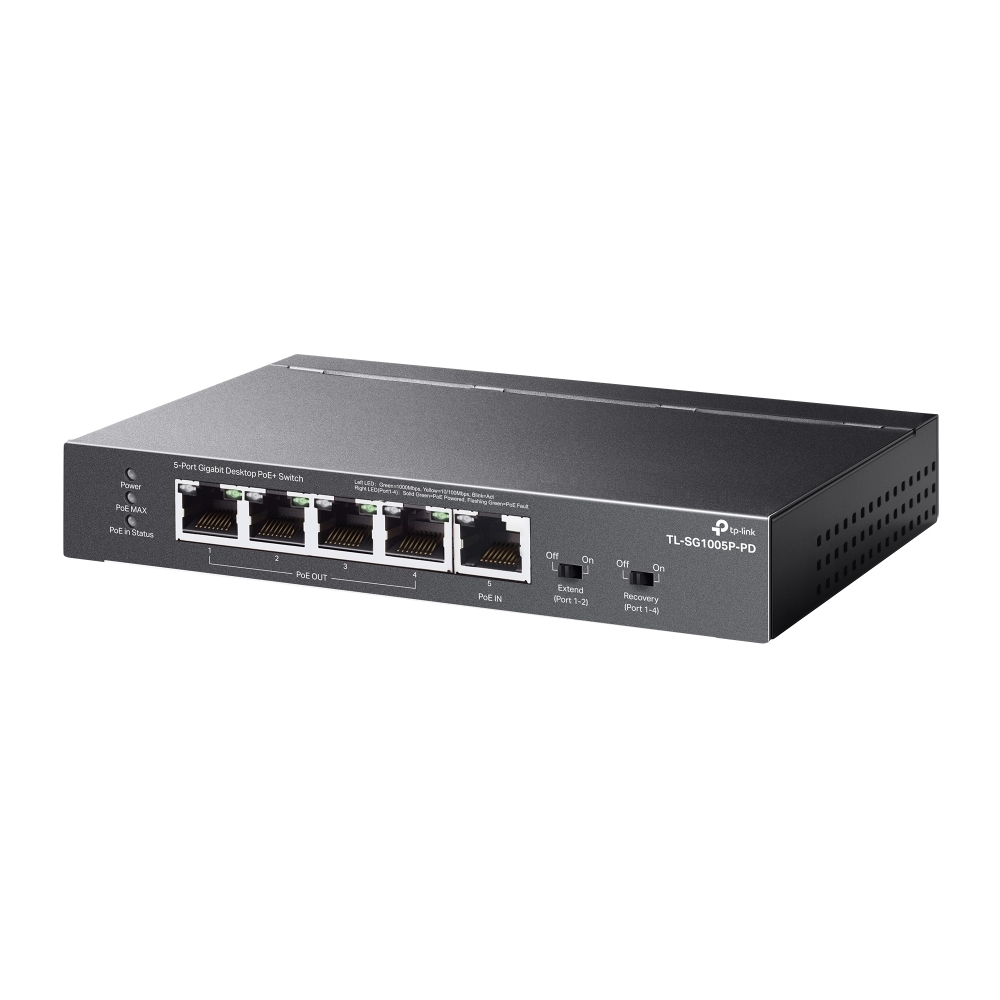

5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out - Omada by TP-Link SG1005P-PD

In Stock

33.33 €

33.33 €

ex VAT

33.33 € ex VAT

Item number:

TP-SG1005P-PD

Unit of measurement: par.

Manufacturer:

Manufacturer:

Manufacturer:

Manufacturer:

Manufacturer:

Manufacturer:

Model:

SG1005P-PD

EAN:

4895252501117

Warranty:

60 months

1 pcs. Packaging (20 pcs.)

- +

Description

The SG1005P-PD is a compact, desktop Gigabit unmanaged switch with full Plug & Play installation that combines one PoE++ input port and four PoE+ output ports. The device accepts power over PoE++ (802.3bt Type 4) and can deliver up to 66 W total PoE budget across all four outputs (at 802.3bt Type 4 input standard), with support for lower levels (47 W at Type 3, 21 W at 802.3at, and 9 W at 802.3af). In addition to the standard 10/100/1000 Mbps Ethernet speeds on all five ports, the TL-SG1005P-PD offers Extend Mode, which extends PoE transmission up to 250m, perfect for outdoor cameras or access points over long distances. The enclosure is completely fanless - absolutely silent for office and home environments, and its metal construction ensures strength and reliability.

No content available yet.

Specifications

Manufacturer	Unmanageable 5 5 Yes 5 66 W No par. Omada by TP-Link SG1005P-PD
Model	SG1005P-PD
EAN	4895252501117
Control type	Unmanageable
Ethernet ports	5
Ports	5
PoE	Yes
PoE ports	5
PoE budget	66 W
Fan	No
Certificates	CE, FCC, RoHS
Operating temperature	-30 – 70℃
MAC table	2K records
Housing	Metal
Interface	5× Gigabit RJ‑45 ports (ports 1-4: output up to 30W; port 5: input up to 90W)
Dimensions	158 × 101 × 25 mm
Switching capacity	10Gbps
Power	PoE
Energy consumption	68.59 W
Gross weight	0.00
Net weight	0.00
